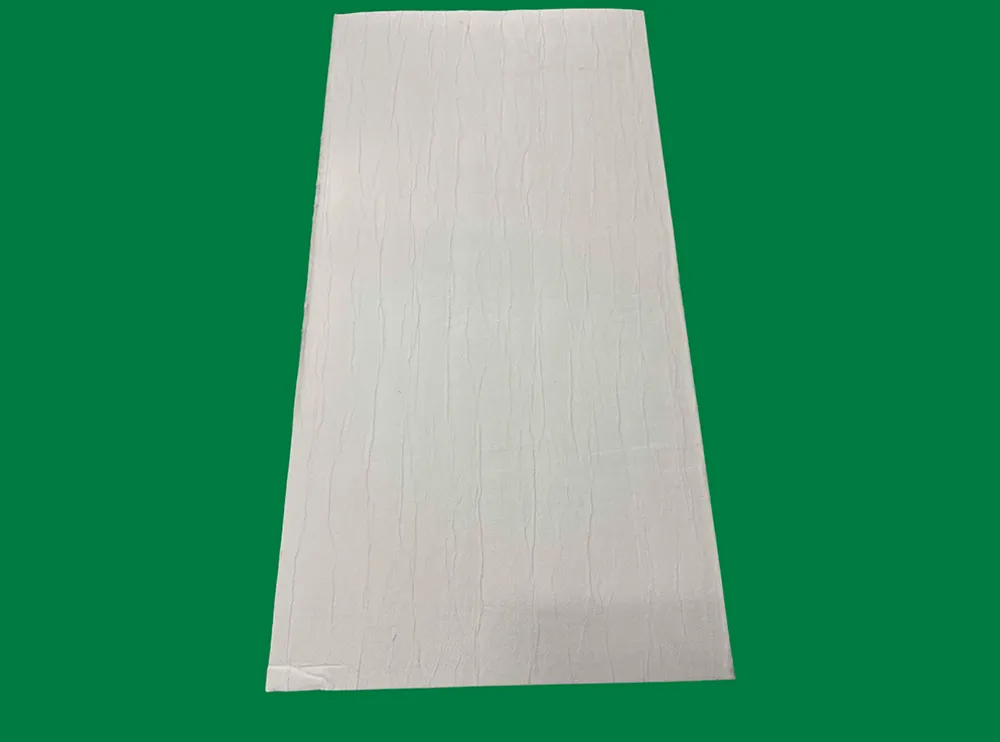

NANO Aerogel Blanket is a high performance insulation blanket composed of silica aerogel, which is the lowest thermal conductor in the world, and of glass fiber needled blanket, suitable for the industrial applications with a Temperature range between -50 ℃ to +450 ℃ and for oil and gas sector and buildings.
Applications:
Building constructions,
Ovens and furnaces
Tanks and containers
Details
Advantages
Superior Thermal Performance It is 2-5 times better than traditional insulation products.
Hydrophobic: Hydrophobic rate ≥99%. The insulation blanket can prevent pipelines and equipment from CUI.
Flame retardant: Grade A. It can effectively prevent pipelines and equipment from flame and fire.
Easy to Install and handle
Environmental Friendly: Aerogel blanket does not contain harmful substance and the whole production process and application process are non-toxic and environmental friendly. It can be reused after removal so no worry about industrial waste disposal.
Physically Robust and long service life
As an inorganic material with stable structure and high compression resilience and water repellent.
Key Specifications and Performace
| Product Specifications | Thickness | 3~30mm | |
| Length | Customizable | ||
| Width | 1500mm | ||
| Color | White | ||
| Recommended Use Temperature | -50~450℃ | ||
| Note: The specific size can be customized according to customer requirements | |||
| Performance | Thermal Conductivity at 25 25℃ (Average Temperature) | 0.017W/（m·k） | GB/T 10295 |
| Burning Level | Class A | GB 8624 | |
| Heating Permanent Line Change | ≥-2.0% | GB/T 17911 | |
| Hydrophobic Rate | ≥99% | GB/T 10299 | |
| Compressive Strength (25%) | ≥80kPa | GB/T 13480 | |
Process
Inspect of raw msterial
Process control
Automation control
Inspect of final product
Packing and deliverry
Our service
Provide Solutions
1. Analysis Heat Losses according to the customers conditions.
2. Provide several solutions for customer to compare and choose according to the provided conditions.
3. Online Technical Support or onsite if necessary.
Frequently Asked Questions
Are you a manufacturer or trading compan?
We are the world’s leading professional Aerogel Manufacturer since year 2004.
What’s the place of origin, quality level, and price level of your Aerogel materials?
The aerogel products are made in Shaoxing, Zhejiang, China, one and a half hour from Shanghai via high speed train, the product is with top quality and good price.
What’s your MOQ requirement?
Normally the MOQ is 4 rolls in a pallet and sample orders are acceptable.
Do you accept OEM or customize order?
Yes, OEM and customized product is acceptable.
What’s the payment terms and lead time if I place an order with you?
For normal orders, 30% T/T in advance, balance to be made before delivery, and lead time 7-12 working days; For customize orders, sampling fees 100% in advance, and lead time 7-20 working days.
Hot-Sale Product
Aerogel powder, a low density, high specific surface, high adsorption aerogel material with high purity and surface activity
Aerogel Removable Insualtion Jackets
Aerogel Removable Insualtion Jackets provide an effectibve and easy to install solution for industrial insulation requirements.
NANO Aerogel Blanket is a high performance insulation blanket composed of silica aerogel
