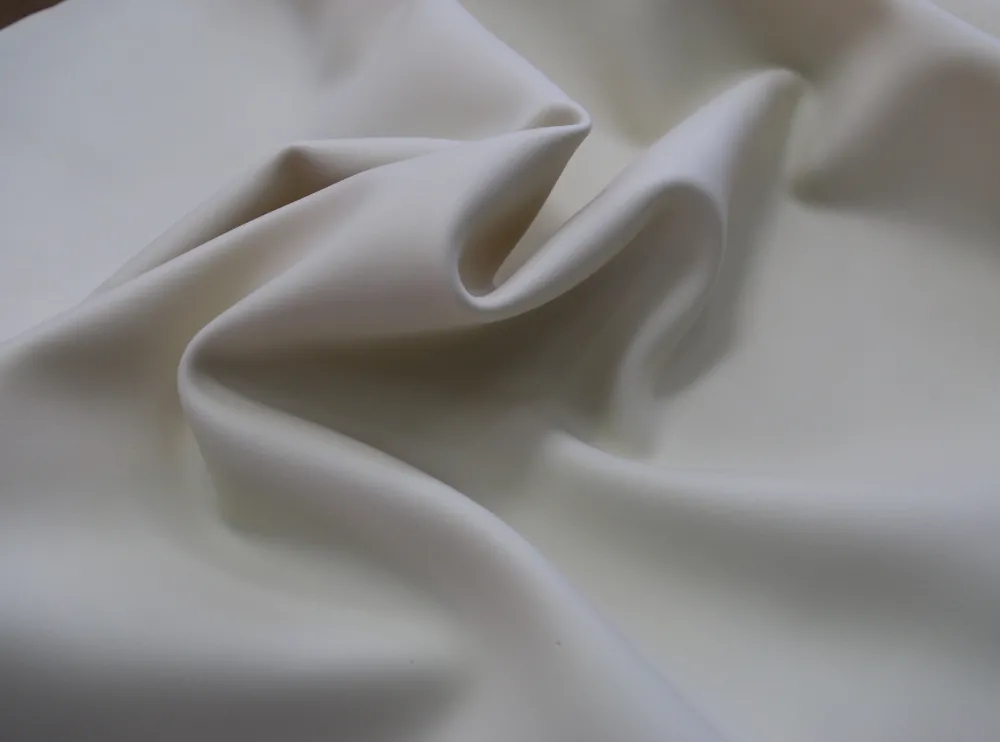

Aerogel fabric is a kind of rubber-plastic insulation material that fixes aerogel particles in the net structure through foaming. Through continuous testing and improvement, the company has solved the pain points of the first generation of aerogel composite materials falling off powder, so as to realize the excellent performance of aerogel fabrics such as non-powdering, softness and washability, so that aerogels can also be applied to textile fabrics. industry. The successful development of aerogel fabrics has enabled the advanced materials originally used in the aerospace field to have a larger application field. At present, Nano Technology has successfully applied aerogel fabrics to composite fabrics, garments, tents, sleeping bags, heat insulation pads, insoles and other civilian products, opening up a broader application prospect of aerogel materials.
Details
Performance
| Lightweight Series | Thickness | 0.5mm | 1mm |
| Weight | ≤30 g/m² | ≤60 g/m² | |
| Effective Width | 1.35m | 1.45m-1.5m | |
| Severe Cold Series | Thickness | 2mm | 3mm |
| Weight | ≤120 g/m² | ≤180 g/m² | |
| Effective Width | 1.45m-1.5m | 1.45m-1.5m | |
| Fire Series | Thickness | 0.5mm-3mm | |
| Weight | 25-180 g/m² | ||
| Effective Width | 1.35m-1.5m | ||
| Composite Series | Thickness | 0.5mm-3mm | |
| Weight | 25-180 g/m² | ||
| Effective Width | 1.35m-1.5m | ||
| Laser Drilling Series | Thickness | 0.5mm-3mm | |
| Weight | 25-180 g/m² | ||
| Effective Width | 1.35m-1.5m | ||
| Hollow Needle Punching Series | Thickness | 0.5mm-3mm | |
| Weight | 25-180 g/m² | ||
| Effective Width | 1.35m-1.5m | ||
| Operating Temperature/Fire Rating | Minus 35℃ to 45℃/Fireproof Series Can Reach UL94-V0 Level | ||
| Thermal Conductivity (25℃) | ≤0.026w/(m*k) Temperature | ||
| Breaking Strength | >0.2MPa | ||
| Elongation At Break | >150% | ||
| Environmental Protection And Safety | ROHS 2.0 Passed CertificationGB 18401-2010 Class C | ||
Process
Inspect of raw msterial
Process control
Automation control
Inspect of final product
Packing and deliverry
Our service
Provide Solutions
1. Analysis Heat Losses according to the customers conditions.
2. Provide several solutions for customer to compare and choose according to the provided conditions.
3. Online Technical Support or onsite if necessary.
Frequently Asked Questions
Are you a manufacturer or trading compan?
We are the world’s leading professional Aerogel Manufacturer since year 2004.
What’s the place of origin, quality level, and price level of your Aerogel materials?
The aerogel products are made in Shaoxing, Zhejiang, China, one and a half hour from Shanghai via high speed train, the product is with top quality and good price.
What’s your MOQ requirement?
Normally the MOQ is 4 rolls in a pallet and sample orders are acceptable.
Do you accept OEM or customize order?
Yes, OEM and customized product is acceptable.
What’s the payment terms and lead time if I place an order with you?
For normal orders, 30% T/T in advance, balance to be made before delivery, and lead time 7-12 working days; For customize orders, sampling fees 100% in advance, and lead time 7-20 working days.
Hot-Sale Product

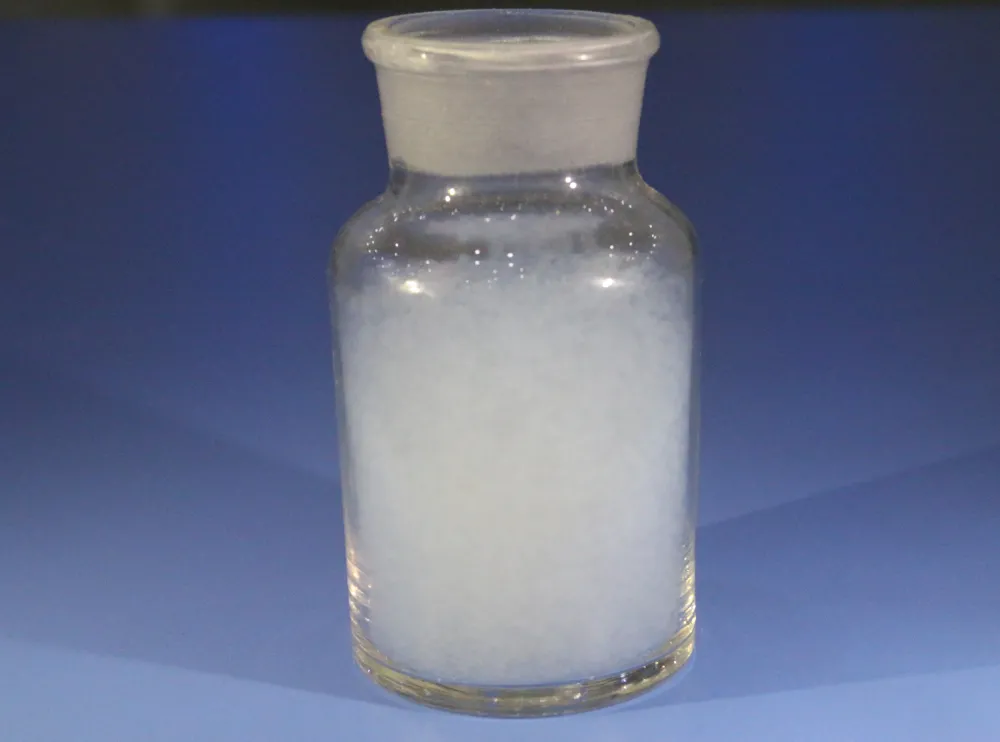

Aerogel powder, a low density, high specific surface, high adsorption aerogel material with high purity and surface activity

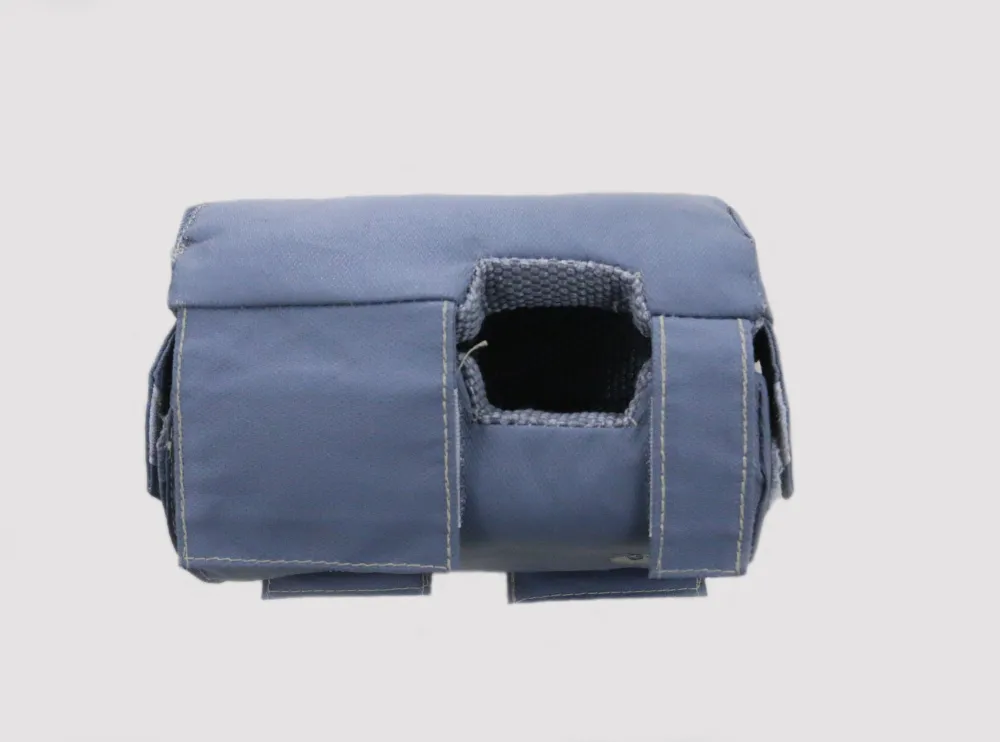

Aerogel Removable Insualtion Jackets
Aerogel Removable Insualtion Jackets provide an effectibve and easy to install solution for industrial insulation requirements.

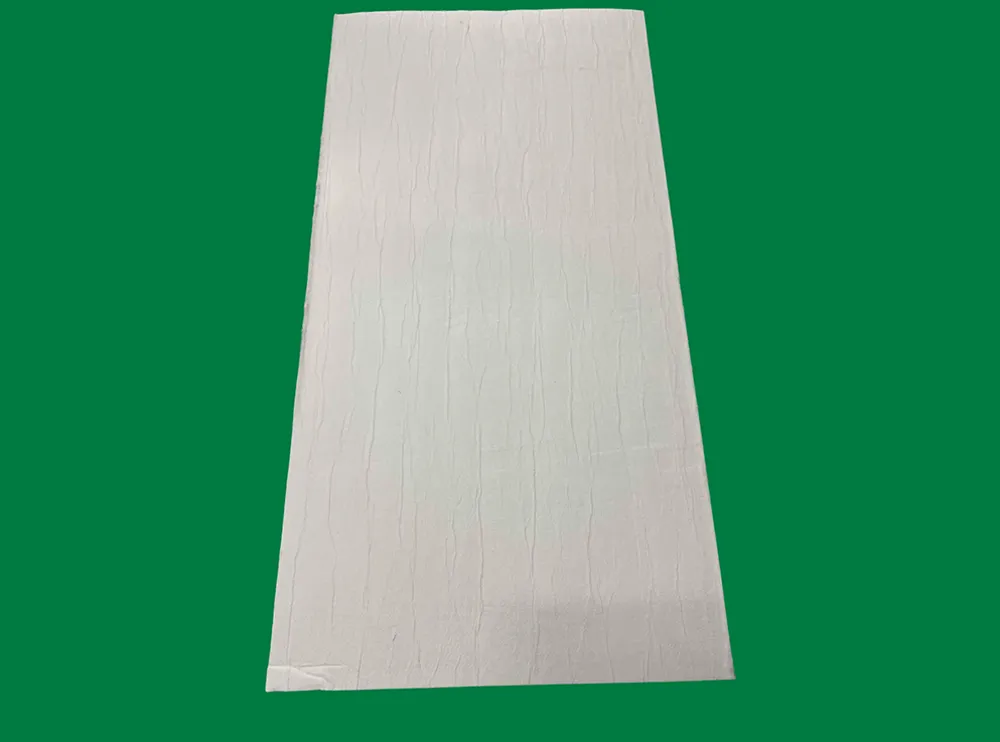

NANO Aerogel Blanket is a high performance insulation blanket composed of silica aerogel
