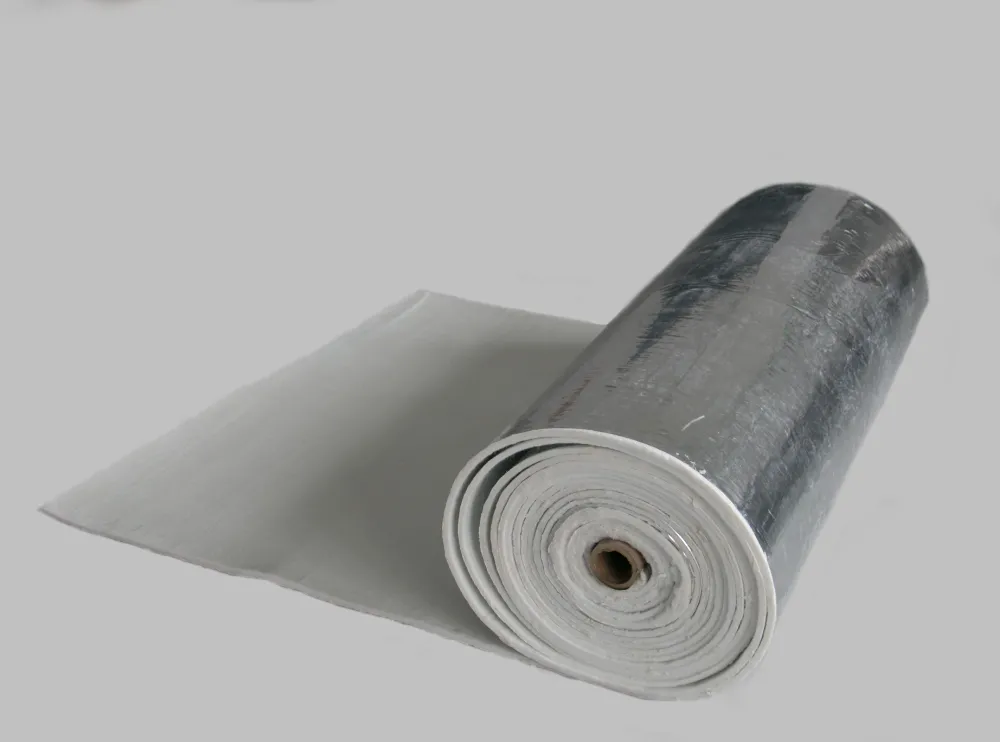

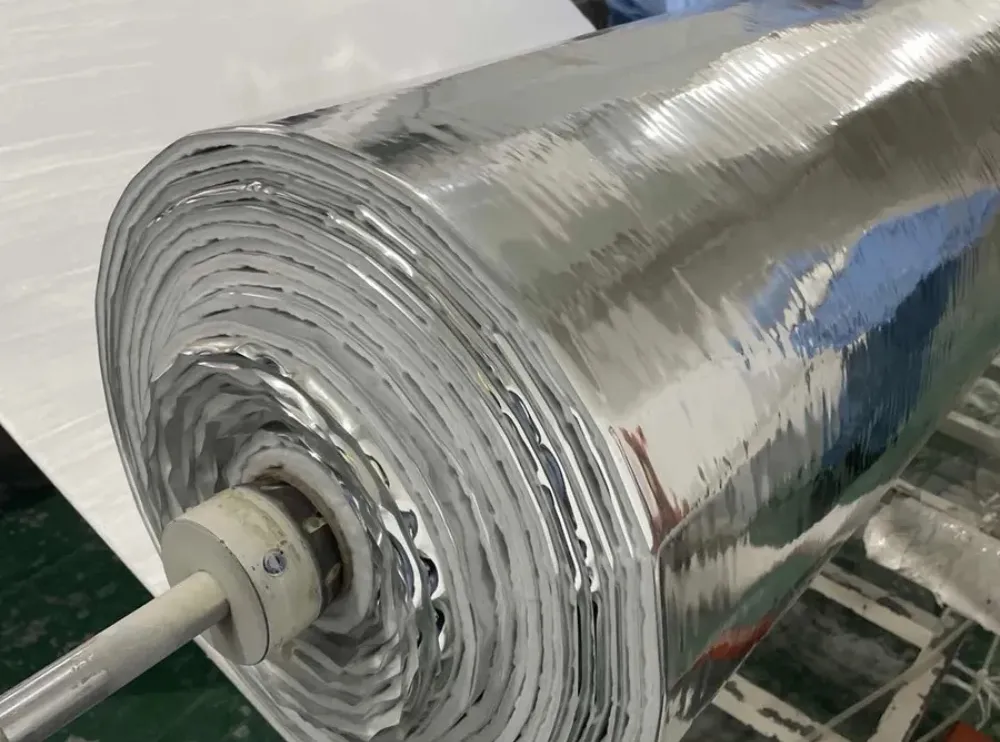

FMC200 Aerogel Blanket is a high performance insulation blanket composed of silica aerogel, which is the lowest thermal conductor in the world, and of glass fiber needled blanket, suitable for the industrial applications with a Temperature range between -200 ℃ to 200 ℃ and for oil and gas sector and LNG application.
Being super low thermal conductive, hydrophobic yet vapor permeable, compression resistant and resilient, inorganic and inflammable profile, easy processing with reduced volume, and environmentally safe, FMC200 Series Aerogel Blanket is the state-of-art product which is the perfect choice for those in need of the best insulation performance with minimum thickness while achieving minimum energy consumption.
Thickness: 10 mm/5mm
Width: 1500mm
Length: 30m/42m
Water Vapor Sorption: 1.17
Compressive Resistance: 88kPa(at 10% compression)
Density: 180±20 kg/m3
Operating temperature: -200~200℃
Details
Advantages
Superior Thermal Performance at low temperature It is 2-5 times better than traditional insulation products.
Hydrophobic: Hydrophobic rate ≥99%. The insulation blanket can prevent pipelines and equipment from CUI.
Flame retardant: Grade A. It can effectively prevent pipelines and equipment from flame and fire.
Easy to Install and handle
Environmental Friendly: Aerogel blanket does not contain harmful substance and the whole production process and application process are non-toxic and environmental friendly. It can be reused after removal so no worry about industrial waste disposal.
Physically Robust and long service life
As an inorganic material with stable structure and high compression resilience and water repellent, Aerogel blanket lifetime is the same as that of the insulated pipelines or equipments.
Key Specifications and Performace
| Specification | Data |
| Thickness | 10 mm/5mm |
| Width | 1500mm |
| Length | 30m/42m |
| Density | 180±20 kg/m3 |
| Tensile strength | ~1000 KPa |
| Operating temperature | -200 to 200 |
| Hydrophobic | Yes |
| Property | Result | Test Method |
| Flexibility | Pass | ASTM C1101/C1101M |
| Corrosiveness to Steel | Pass | ASTM C1617 |
| Water Vapor Sorption | 1.17 | ASTM C1104/ 1104M |
| Fungi Resistance | Pass | ASTM C1338 |
| Surface Burning Characteristics | FSI：0 SDI：0 | ASTM E84 |
| Maximum Use Temp | 250℃ | ASTM C447,ASTM C411 |
| Water absorption | 5% | ASTM C1763 |
| Stress Corrosion Performance for Use on Austenitic Stainless Steel | Pass | ASTM C795 |
| Compressive Resistance | 88kPa(at 10% compression) | ASTM C165 |
| Linear Shrinkage | 0.1%（Length）; 0.2%（Width） | ASTM C356 |
FMC200 Aerogel Blanket is mainly applied in low-temperature cryogenic pipelines and equipment, and high-clean environments.
Widely applied in:
LNG, liquid nitrogen, liquid oxygen, and other low-temperature storage and transportation
Cold storage facilities, chemical refrigeration equipment, and other low-temperature insulation applications
Pharmaceutical industry, electronics industry, and other high-cleanliness environment insulation applications
Its extremely low thermal conductivity and ultra-thin insulation thickness significantly save space, maximizing cost savings in logistics, warehousing, labor, and time. Additionally, its density is lower than that of conventional aerogel insulation blankets, making it more flexible and easier to install.
Looking to purchase aerogel materials? Avoid common pitfalls that could waste your time, money, and compromise quality. Here are some pitfalls to avoid:
Aerogel materials are advanced high-tech materials, and finding a professional and reliable supplier is no easy task. Lack of supplier information may lead to the procurement of substandard, low-quality, or even counterfeit aerogel materials that may not meet the required specifications. You can ask potential aerogel material suppliers: Can you provide a turnkey solution for my project? What are the production and inspection standards for your aerogel products? Do you provide complete certificates?
When comparing aerogel materials with other materials (especially traditional insulation materials) in terms of specifications and costs, fully consider actual working conditions such as temperature, humidity, and material lifespan, and thoroughly compare long-term project costs such as total long-term energy costs, installation and maintenance costs, environmental protection costs, and costs for recycling old insulation materials.
Aerogel has numerous potential applications, but not all aerogels possess the same properties. Ensure your supplier provides certification and testing data to confirm the aerogel meets your specific requirements.
Aerogel materials come in various types, each with unique properties and intended applications. It is essential to clearly communicate your specific requirements to the supplier. Otherwise, this may lead to delays, communication issues, and the inability to provide aerogel materials that meet your needs.
Each aerogel material has its own unique application and installation requirements. Ensure you select the appropriate aerogel material that can be installed and operate stably according to the actual project environment (e.g., temperature and humidity, installation space, VOC requirements, etc.).
Collaborating with a reputable supplier who understands the complexities of aerogel materials can help avoid these pitfalls and ensure a smooth procurement process. Contact us immediately to learn more about our high-quality aerogel materials and customer service.
Specification Compliance and Peformance
ASTMC 1728 ASTM C165, ASTM C356, ASTM C795, ASTM C1101/1101M, ASTM C1104/1104M, ASTM C1338, ASTM C1617, ASTM C1763, ASTM E84, ASTM E96
Process
Inspect of raw msterial
Process control
Automation control
Inspect of final product
Packing and deliverry
Our service
Provide Solutions
1. Analysis Heat Losses according to the customers conditions.
2. Provide several solutions for customer to compare and choose according to the provided conditions.
3. Online Technical Support or onsite if necessary.
Frequently Asked Questions
Are you a manufacturer or trading compan?
We are the world’s leading professional Aerogel Manufacturer since year 2004.
What’s the place of origin, quality level, and price level of your Aerogel materials?
The aerogel products are made in Shaoxing, Zhejiang, China, one and a half hour from Shanghai via high speed train, the product is with top quality and good price.
What’s your MOQ requirement?
Normally the MOQ is 4 rolls in a pallet and sample orders are acceptable.
Do you accept OEM or customize order?
Yes, OEM and customized product is acceptable.
What’s the payment terms and lead time if I place an order with you?
For normal orders, 30% T/T in advance, balance to be made before delivery, and lead time 7-12 working days; For customize orders, sampling fees 100% in advance, and lead time 7-20 working days.
